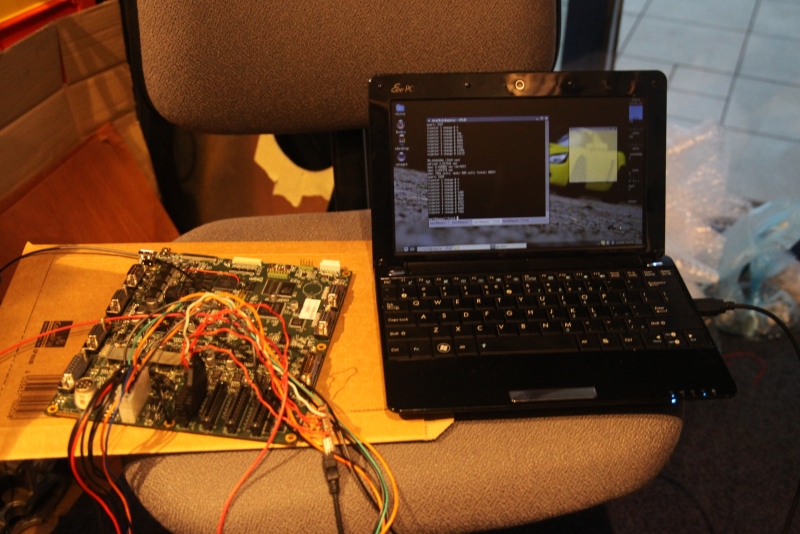

Just a small intro on the test setup. It consist of my netbook running a simple C program based on libftdi. It is using bitbang mode through a Sparkfun ft232r FTDI adapter to a driver board (thanks Peter!!).

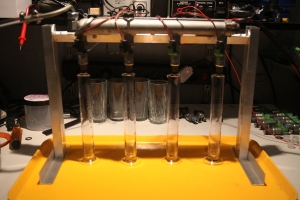

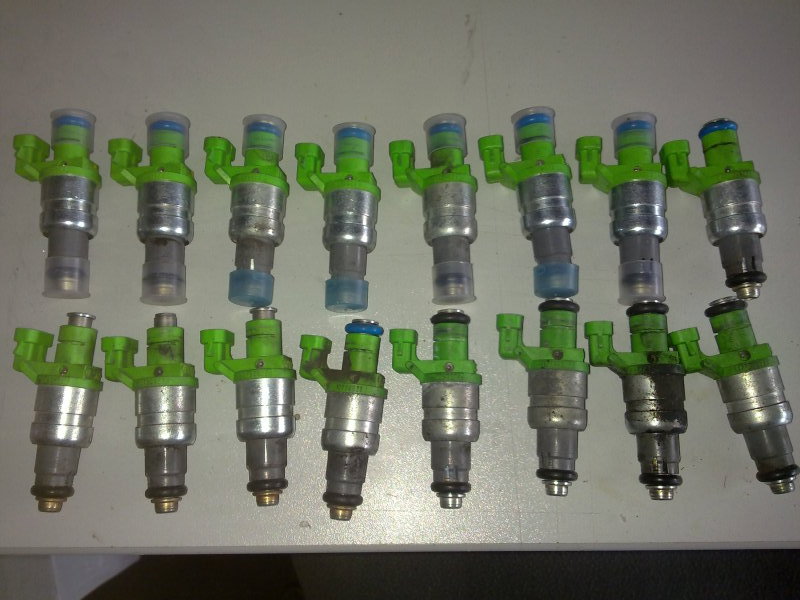

Next is the injector setup. I made a small rig holding a slightly modified Z22SE fuelrail. It has the middle pipe removed and a damper fitted at the side. So it basically is a dead end fuel rail. For injectors the 2 on the left are the standard 2.2 injectors, the right 2 are the standard LSJ injectors. None of the injectors have been cleaned, just stock second hand :)

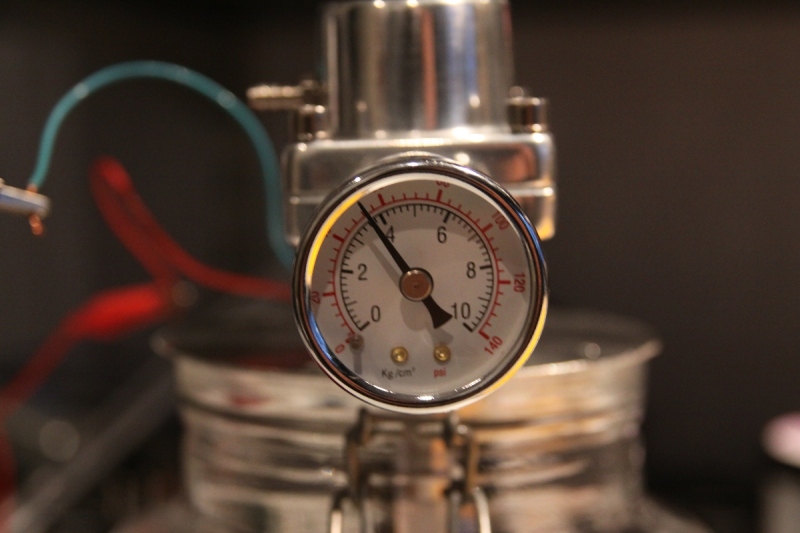

On the gas tank I fitted a fuel pressure regulator. It is set at 3.8 bar for this test as that is the standard fuel pressure on the Speedster. As this is a flow test at 100% dutycycle there is no point increasing the pressure to compensate for manifold vacuum.
As a fuel I used white spirits, which seems to be a pretty standard fluid to use when testing injectors. I tested the injectors 5 seconds a piece at 100% dutycycle. I didn't test them simultaneously to prevent any problems in pressure drop.
<object style="height: 344px; width: 425px"><param name="movie" value="http://www.youtube.com/v/nUNpgolbSvA?version=3"><param name="allowFullScreen" value="true"><param name="allowScriptAccess" value="always"><embed src="http://www.youtube.com/v/nUNpgolbSvA?version=3" type="application/x-shockwave-flash" allowfullscreen="true" allowScriptAccess="always" width="425" height="344"></object>
After the test I read the scales on the measure cylinders.

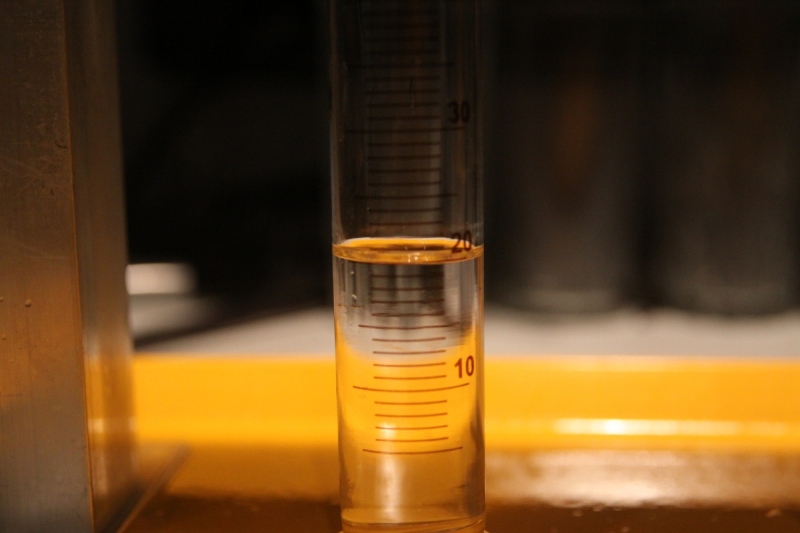

Injector 1 (standard z22se)

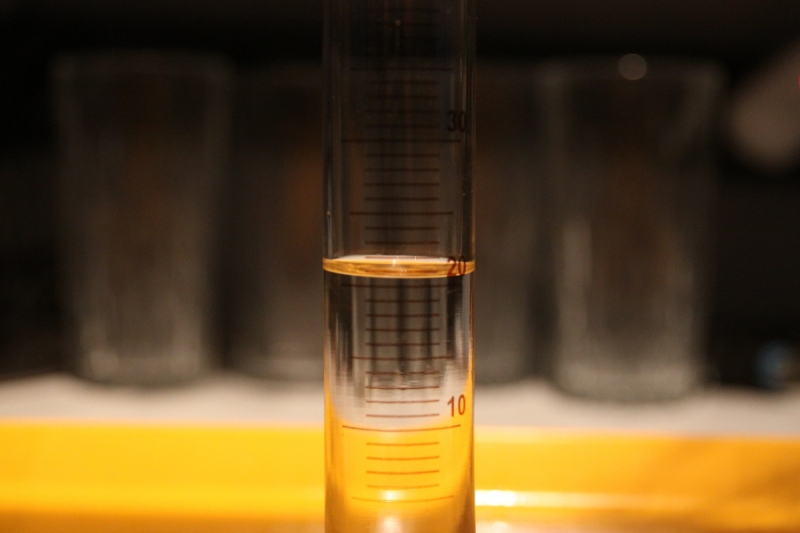

Injector 2 (standard z22se)

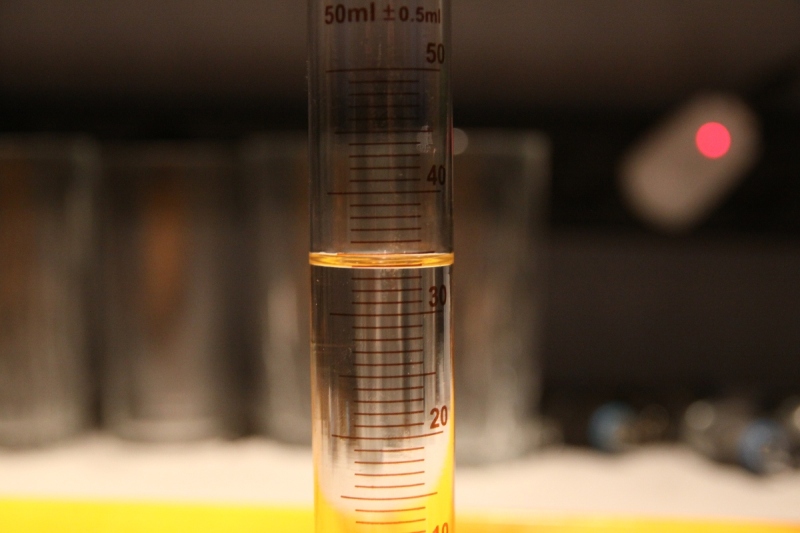

Injector 3 (standard LSJ)

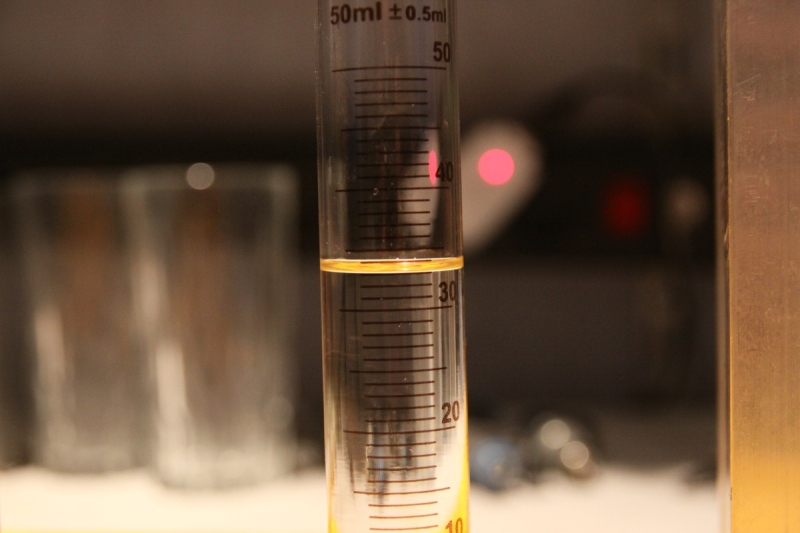

Injector 4 (standard LSJ)
For this test the number of ml per injector were:
<a href="http://www.verboom.net/projects/speedster/injectors/index.html">Injectors</a>
One uncertainty has always been the 352cc/min the LSJ's are rated for. Some sites say it is at 3.0 bar some at 3.8 bar. It looks like it is 352cc/min @ 3.0bar.
